Ordering Blinds
When ordering motorized blinds make
sure to include the following information:
- Color:
- Width of window:
- Height of window:
- Do you prefer 1/2" or 1" slats?
- Would you like an inside mount or outside mount?
- On which side would you like the wire to be excessible?
Installation
Motorized blinds use the same methods for mounting as conventional blinds. All mounting hardware and instructions are included.
  The relay board is approximately 2.5" x 2.5" and can be mounted in the ceiling or in a Single Gang "Old Work" box with a blank wall plate.
This tiny IR Receiver is designed to peak out from behind a surface, having virtually no visual effect on an installation. The length of white modular cable is 2 feet (can be extended in the field). One IR Receiver, connected to a system could control of up to 60 motors.
Dimensions of black part of IR Receiver: 1/4" x 1/4" x 1/4"

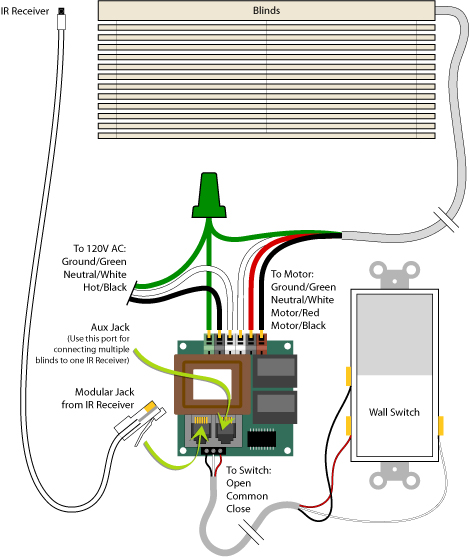

Power connections to the relay board are made as shown:
Never connect the IR Receiver Jack on one Relay Board to an IR Reciever Jack on a different Relay Board.
Contact rating is 120 VAC, 1/3 HP Motor, 34.8 LRA / 6 FLA.
This connector is rated for 28 AWG minimum and 12 AWG maximum, stranded or solid wire. Only 1 wire per connection.
Each blind can be controlled individually, as sub groups,
and all at once.
|
|
