Ordering a Nurse Call Controller
Before ordering a Nurse Call Controller it's important to collect all of the proper information from your customer.
Information needed:
Brand of Nurse Call
Model of Nurse Call
Does it use an open or closed circuit?

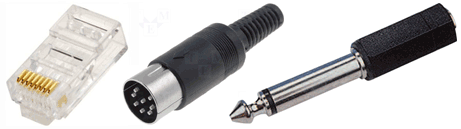

Type of connector on the cord button (digital photos are helpful)
Nurse Call Controller
The RESPONSE 1000 is designed to activate a nurse call system remotely, through the REACH ECU and/or one of the buttons on the Hand Held Wireless Remote.
This interface is custom wired to operate the users specific equipment.
Instructions:
Simply plug the cable into the port on the wall that was originally designated for the nurse call button.
Plug the power cord into a power outlet.
And place the External Receiver in an area that is in the “line-of-sight” of the Wireless Remote or REACH.
The RESPONSE 3000 is designed to operate an electric bed, nurse call system, and motorized door remotely, through the REACH ECU and/or the Hand Held Wireless Remote.
This interface is custom wired to operate the users specific equipment.
Instructions:
Simply plug the cable into the port on the bed that was originally designated for the hand pendant.
Plug the other cable into the port on the wall that was originally designated for the nurse call button
Finally, plug the power cord into a power outlet, and place the External Receiver in an area that is in the “line-of-sight” of REACH or the Wireless Remote.
|
|
